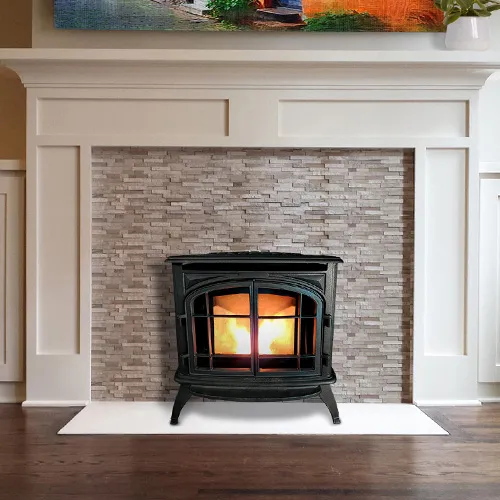

Echo-Comstock Pellet Stove
Thelin™ Hearth Products News Alert - Echo/Comstock Pellet EPA 2020
75% Efficiency Rated!The Echo-Comstock Pellet Stove is the latest pellet heating product from Thelin Hearth incorporating our advanced DC Drive Technologies. With 25 years and thousands of units operating the original DC Drive-Battery Back Up system provides a high 36,000 btu burn rate and lower overall operating costs. The Echo-Comstock Pellet is equipped with 12 volt battery backup circuitry including battery trickle charge capability. When your power goes out, you can rest assured that the Echo-Comstock will keep going. Environmentally conscious with a Ultra Low EPA emissions output of only 0.88 grams per hour and can be operated with a solar panel! With convenience, durability and vintage styling in mind, this unique stove will add a touch of elegance to your home.
Features
- Your choice of six porcelain enamel colors

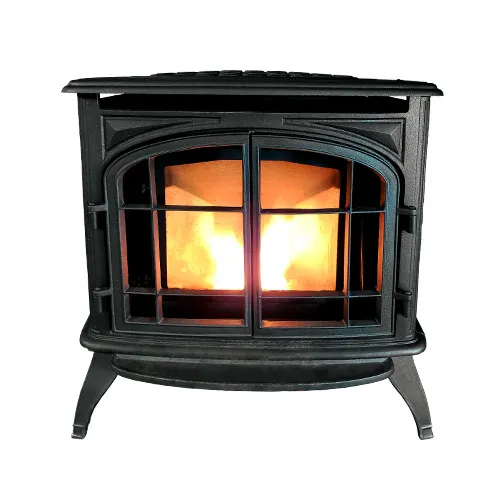

- Your choice of eight standard painted colors (Metallic Black in stock)
- Push-button controls
- Cast-iron fire pot
- Automatic fuel feed - 2020 Software
- Automatic electronic ignition
- 12 volt battery backup system with trickle charge
- Ultra Low EPA Emissions - Estimated 1.10
- High Efficiency Pellet Heater - State and Local Tax Credits (Check with local dealer or official)
Options
- Wall-mounted thermostat
- Remote thermostat
- Battery back-up cable
Specifications
- Height: 29″
- Width: 26″
- Depth: 28″
- Weight: 266 lbs
- Door Opening: 14″ x 13″
- Hopper Capacity: 50 lbs
- Base Foot Print: 16″ x 26″
Performances
- Feed Rate (high): 4.4 lbs/hr (36,400 BTU)
- Feed Rate (low): 1.33 lbs/hr (approx.)
- Combustion Efficiency: 96%
- Average HHV Efficiency: 75.0% - State and Local Tax Credits (Check with local dealer or official)
- EPA 2020 Emission Rated: 0.88 Grams/Hr.
- Power consumption: 120VAC 28 watts
Echo-Comstock Pellet Stove Key Features
- Battery Backup System - The stove includes a 12-volt battery backup, allowing it to operate for up to 48 hours during power outages, ensuring you stay warm even when the electricity goes out.
- High Efficiency - With a burn rate of 36,000 BTUs, the Echo-Comstock provides powerful heating while being eco-friendly with ultra-low emissions.
- User-Friendly Controls - It features push-button controls and an automatic fuel feed, making it simple to operate and maintain.

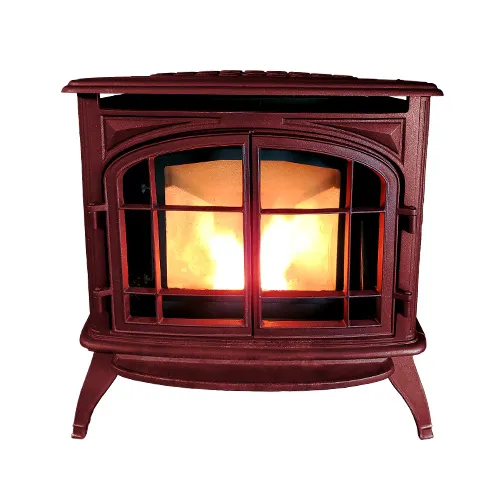

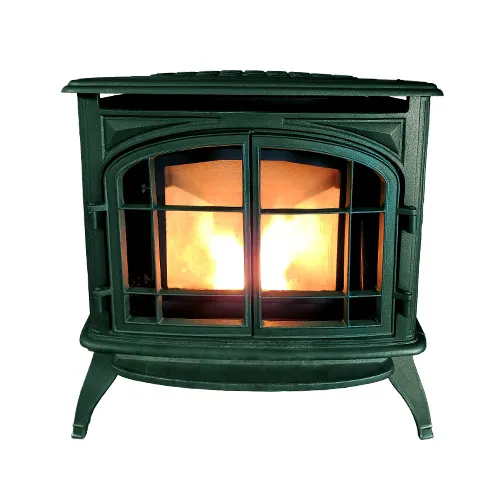

- Variety of Colors - Customers can choose from six porcelain enamel colors and eight standard painted colors, allowing for customization to fit any home decor.
- Easy Installation - The stove requires minimal installation space, needing only a 5-foot vertical chimney and just 3 inches of clearance from combustible walls, making it convenient for various home setups. Always check your local building codes for specific state and local requirements.
Common Questions From Our Customers
- How does the battery backup work, and how long does it last?
- The Echo-Comstock Pellet Stove features a 12-volt battery backup system that allows it to continue operating during power outages. This battery can keep the stove running for up to 48 hours, ensuring you have heat even when the electricity is unavailable. It automatically switches to battery power when needed, so you don’t have to worry about manually changing anything.
- Is it difficult to operate and maintain the stove?
- Not at all! The Echo-Comstock is designed with user-friendly controls, including push-button operation and an automatic fuel feed system. This means you can easily start and adjust the stove without complicated settings. Maintenance is straightforward, and the stove is built to be efficient, requiring less frequent cleaning compared to traditional wood stoves.
- What type of fuel does the Echo-Comstock Pellet Stove use?
- The Echo-Comstock Pellet Stove uses wood pellets as fuel. These pellets are made from compressed sawdust and are an eco-friendly option, producing less smoke and emissions compared to traditional wood. They are widely available and easy to store, making them a convenient choice for heating your home.
- How much space can the Echo-Comstock Pellet Stove heat?
- The Echo-Comstock Pellet Stove is capable of heating spaces of up to 1,500 square feet, depending on factors like insulation and layout. This makes it suitable for most average-sized homes or specific areas like living rooms or basements, providing efficient warmth where you need it most.
- Is the Echo-Comstock Pellet Stove safe to use in my home?
- Yes, the Echo-Comstock Pellet Stove is designed with safety in mind. It features a sealed combustion system that minimizes the risk of smoke and carbon monoxide entering your home. Additionally, it has built-in safety features, such as an automatic shut-off if the stove overheats, ensuring a safe heating experience for you and your family.
Manual & EPA Information
No Power? No Heat? No Problem!
Amazing new pellet heater uses battery backup DC drive technology to solve one of the biggest consumer concerns regarding back up heat.
With all of the ice storms and power outages in recent winters one key question on the consumer's mind is how do I provide back up heat? Today's modern homes use many appliances to heat and cool. However, when the power goes out those appliances don't work. Now you can say "we'll just get a generator and the problem goes away". This of course is a very expensive undertaking as the average small home style generator will only power a small number of appliances and require special circuits and wiring to adapt.
Most power outages are resolved fairly quickly (in recent winters some customers in the North East were without power for a week!). This is where the Thelin™ Pellet Heaters pellet heaters shine.

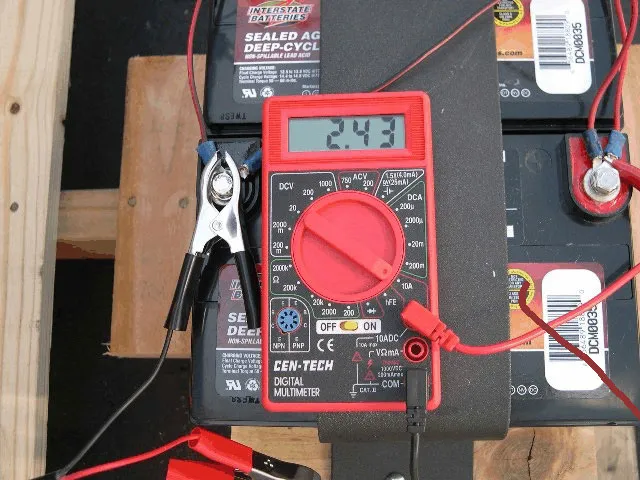

Thelin™ Pellet Heaters pellet heaters utilize 12 volt dc drive technology to provide ultra low power consumption and up to 48 hours of continuous operation with the 120vac power goes down with the optional 30 amp/hr battery. With the battery to power the heater the digital control system monitors the ac power and charges the battery. When the power goes out the heater is already running on dc power so it never misses a beat.

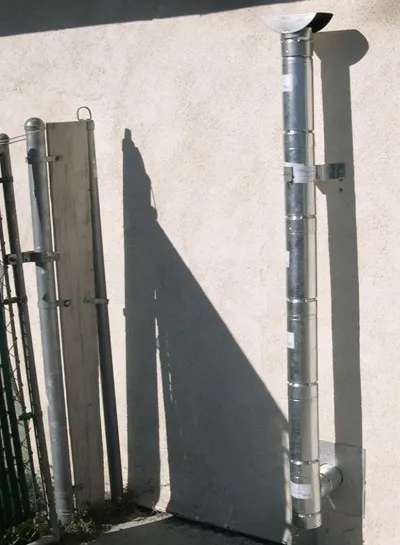

Thelin™ Pellet Heaters are simple to install requiring only a minimum of 5' vertical chimney (high wind areas, high altitude, or additional elbows will require additional vertical rise). With only 3" clearance to combustible walls and a noncombustible hearth pad your ready to go!
Today's consumer is concerned about the environment, with low power consumption and alternative fuel, the Thelin™ Pellet Heaters is perfect statement - "I'm doing my part".
Thelin™ Pellet Heaters pellet heaters are manufactured in USA and have been in service for more than 25 years. A full line including 4 models all with battery backup is the best value in the industry. Thelin™ Pellet Heaters retail for the same as many other pellet products that do not have these features. For additional information, go to our contact page and fill out our form, or call us at (775) 241-2586.

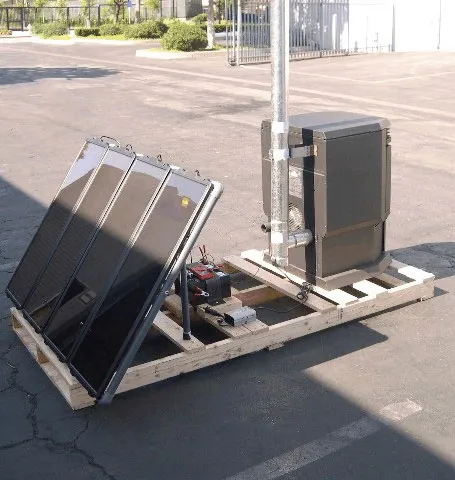

Hybrid Solar Bio-Mass Heater developed Thelin™ Company & Sierra Products!
Considering all of the new green products in development the "Hybrid Bio-Mass Pellet Fuel Heater" must be one of the most unique. With a 12 volt DC power system, digital control, and bio-mass fuel source you would think we are looking into the super secret research and development program sponsored by the large corporations.
However, a small development and manufacturing business has successfully adapted it's proprietary DC drive heater technology to residential heating products. Furthering the goal of alternative fuel bio-mass heater they have proven the technology can be powered by a small solar system.

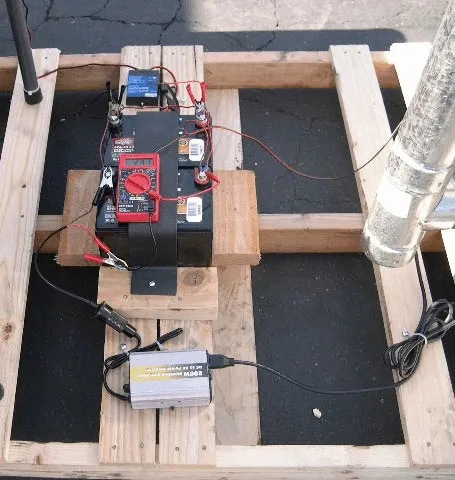

Robert Beck, Design Engineer for Thelin™ Hearth Products and Sierra Products, Inc. located in Carson City, NV. has successfully engineered what could be the lowest carbon foot print heating system in existence today (next to the sun itself). Consider the heater operates by burning renewable wood pellets made from recycled wood chips. It uses just 37 watts of electricity and will run continuously with a 60 watt solar charging system and 12v battery. Now that is a "green" heating system.
You would think this type of technology would take years to make ready for market and daily use. You would be wrong. The Thelin™ & EasyFire Pellet Fuel Heaters have been in continuous operation for years with it’s proprietary battery back operating system. Thousands of consumers have benefitted when the house power has gone out during ice storms and bad weather. The heater will operate for days on a 12v DC battery.
So what would you have to do to be the first one on the block to have a "Solar Hybrid Bio-Mass Heating System". Contact your local Thelin™ Hearth or Sierra Products dealer for a quote. And incase you are not sure about the solar portion of the installation, the Thelin™ & Sierra EasyFire Pellet Heaters run just fine on house power using less than a 40 watt light bulb of energy. Still the lowest carbon foot print of any heating system. For additional information, go to our contact page and fill out our form, or call us at (775) 241-2586.
The Complete Backup Heating System!
Consider what you would do if the power was out for several days and your main heating system was not operating? This is the question that the engineers at Thelin™ Hearth Products responded to when consumers through out the US where dealing with this very problem.
With all of the ice storms and power outages during a typical winter season one key question on the consumers mind is "How do I provide back up heat?" Today's modern homes use many appliances to heat and cool. However, when the power goes out those appliances don't work.
Now you can say "We'll just get a generator and the problem goes away". This of course is a very expensive undertaking as the average small home style generator will only power a small number of appliances and require special circuits and wiring to adapt.

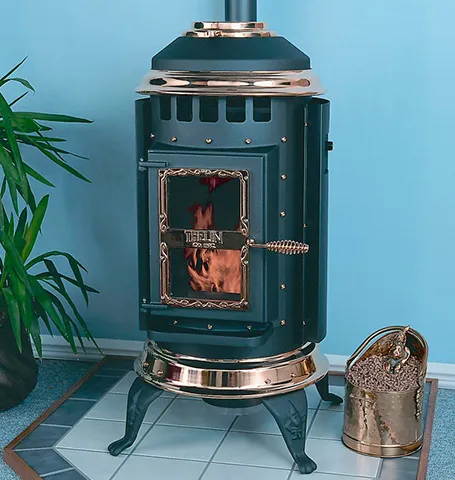

Most power outages are resolved fairly quickly (however in the North East some customers were without power for days). This is where the Thelin™ DC Drive Pellet Heater shines.... Thelin™ Pellet Heaters utilize a proprietary 12 volt DC drive technology to provide ultra low power consumption and up to 48 hours of continuous operation with a optional 30 amp/hr 12VDC battery. With the battery to power the heater's systems the digital control system monitors AC power and charges the battery. When the AC power goes out the heater is already running on DC power so it never misses a beat. Amazingly this cutting edge technology is shared with all our pellet heaters including the Classic Series Parlour and Gnome models. Consider the antique “pot belly” style of stove with the latest technology drive system and a fuel saving Low average fuel burn of 1 1/2 lbs. per hour a true heating sensation.
Thelin™ Pellet Heaters are simple to install requiring only a minimum of 5' vertical chimney (high wind areas, high altitude, or additional elbows will require additional vertical rise). With only 3" clearance to combustible walls and a non-combustible hearth pad your ready to go!
Today's consumer is concerned about the environment, with low power consumption and alternative fuel, the Thelin™ Pellet Heater is perfect statement - "I'm doing my part".
Thelin™ Pellet Heaters are now manufactured in Carson City, NV. USA and have been in service for more than 25 years. A full line including 4 models all with battery backup is the best value in the industry.
